StoneLux™ Backlighting LED

Tunable White LED Sheets

Dynamic Warm-to-Cool White Ambience for Translucent Surfaces

Engineered specifically for backlighting translucent materials like onyx, quartzite, and custom architectural features. StoneLux™ Tunable White LED sheets deliver seamless, hotspot-free illumination with integrated modular ports and field-cuttable sizing to fit any countertop footprint on-site.

Main Spec Highlights

Color Tuning (CCT): 2700K (Warm White) to 6000K (Cool White) dynamic range
Color Accuracy: High CRI 90+ (Preserves the natural veining and depth of the stone)
Output & Power: Up to 1,800 Lumens | 20W per sheet (24V DC Constant Voltage)
Sheet Dimensions: 12″ W × 24″ H (2 sq ft per sheet)
Field Customization: Fully field-cuttable to fit custom shapes, sinks, and curves while maintaining cULus listing
Diffusion Support: Includes 1/2″ clear rubber stand-offs (lifts and supports material with 220 lbs load rating per sheet for an even, diffused glow)
Installation: 3M peel-and-stick backing with plug-and-play 3-pin terminal connectors on all sides
Control & Dimming: Smooth 5%–100% dimming; compatible with DMX, RF Wireless, RS-232, and smart automation
Durability: Rated for 50,000 hours | IP54 rated

RGBW LED Sheets

Full-Spectrum Color Scenes

Designed for statement bar fronts, luxury backsplashes, and architectural feature walls backlit with translucent onyx and quartzite. StoneLux™ RGBW sheets feature 4-in-1 diode technology—combining rich multi-color saturation with an independent true white channel so your stone never looks muddy or washed out.

Main Spec Highlights

Diode Configuration: 4-in-1 LED (RGB + Dedicated White Channel)
Color Accuracy: High CRI 90+ (Highlights natural stone veining and depth)
Output & Power: Up to 1,000 Lumens | 20W per sheet (24V DC Constant Voltage)
Sheet Dimensions: 12″ W × 24″ H (2 sq ft per sheet)
Field Customization: Cut to fit on-site around sinks, cutouts, and custom shapes while maintaining cULus listing
Diffusion Stand-offs: Includes 1/2″ clear rubber spacers (220 lbs load rating per sheet) to eliminate hotspots and level heavy stone
Installation: 3M peel-and-stick backing with 5-pin plug-and-play quick connectors on all sides

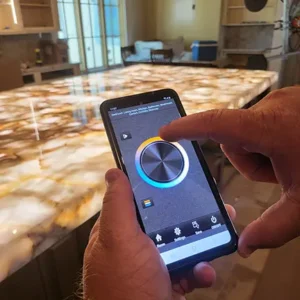

Control Compatibility: DMX 512, RF Wireless Remotes, Wall Touch Panels, and Smart App Control
